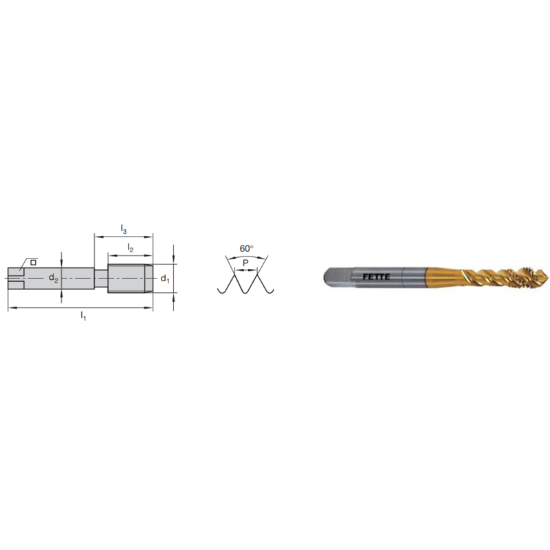

Picture of LMT FETTE 1400839 M11-1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1400839 M11-1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1400839
Delivery date: 3-5 days
$50.00

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN +
Package Size 1
Application Mod Bottom Tapping, Cut Tapping, Tapping
Made In USA No
Shipping State Illinois
Performance Rating High Performance
Dimensional Specifications
Thread Size M11
Thread Limit 6H
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Pitch 1.00MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Drill Range 0.3717 9.44MM - 0.3870 9.83MM
Tap Type Mod Bottom
Shank/Pilot Dia 0.3150 8.00MM
Overall Len 3.5430 89.99MM
Length Type Standard
Thread Type Metric
Tool Material Steel
Tap Square 0.2440
Dimension Standard DIN/DIN
Flute Direction R - Right
Flutes/Inserts 4
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Medical Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Multi Spindle Yes
