  • LMT FETTE 1400417 M4-0.70MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

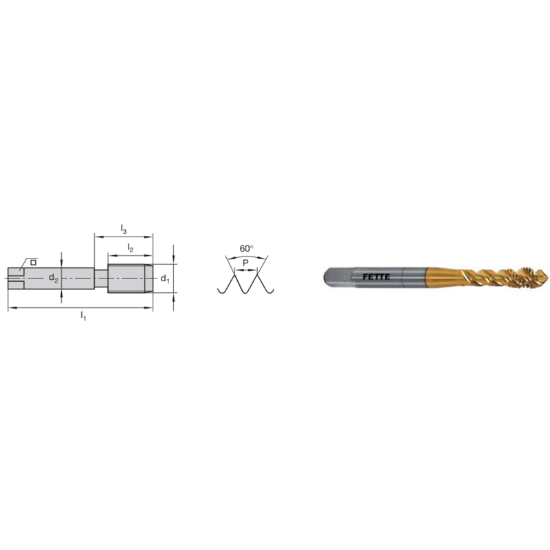

Picture of LMT FETTE 1400417 M4-0.70MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1400417 M4-0.70MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1400417
Delivery date: 3-5 days
$37.33

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN +
Package Size 1
Application Mod Bottom Tapping, Cut Tapping, Tapping
Made In USA No
Shipping State Illinois
Performance Rating High Performance
Dimensional Specifications
Thread Limit 6H
Tap Chamfer 2.0P-3.0P
Thread Type Metric
Overall Len 2.4800 62.99MM
Thread Size M4
Drill Range 0.1433 3.64MM - 0.1472 3.74MM
Tool Material Steel
Dimension Standard DIN/DIN
Flutes/Inserts 3
Flute Direction R - Right
Shank/Pilot Dia 0.1770 4.50MM - #16
Length Type Standard
Thread Pitch 0.70MM
Tap Square 0.1340
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Multi Spindle Yes
Agricultural YES
Medical Yes
Energy Yes
