  • LMT FETTE 1400408 M3-0.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

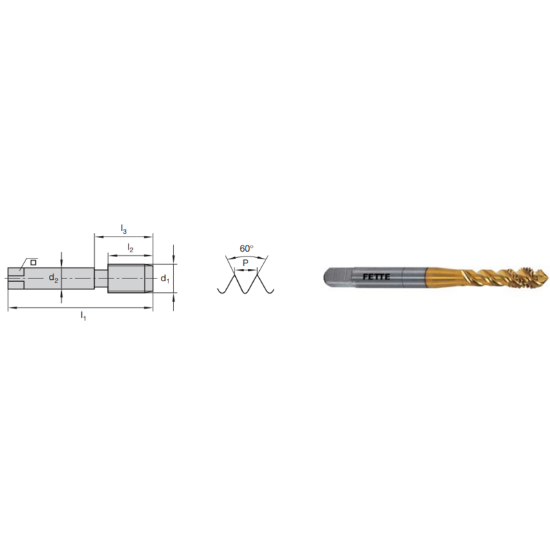

Picture of LMT FETTE 1400408 M3-0.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1400408 M3-0.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1400408
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Coating TiCN +
Package Size 1
Application Tapping, Mod Bottom Tapping, Cut Tapping
Performance Rating High Performance
Dimensional Specifications
Tool Material Steel
Flute Direction R - Right
Length Type Standard
Tap Chamfer 2.0P-3.0P
Thread Size M3
Thread Limit 6H
Drill Range 0.0976 2.48MM - 0.1028 2.61MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Type Metric
Shank/Pilot Dia 0.1380 3.51MM
Overall Len 2.2050 56.01MM
Thread Pitch 0.50MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Square 0.1060
Dimension Standard DIN/DIN
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
Multi Spindle Yes
Agricultural YES
Medical Yes
Energy Yes
