  • LMT FETTE 1400167 M14-1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +
Picture of LMT FETTE 1400167 M14-1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

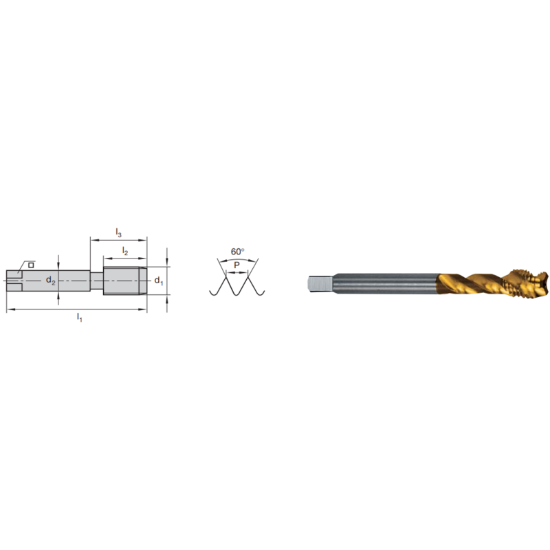

LMT FETTE 1400167 M14-1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1400167
Delivery date: 3-5 days
$115.87

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN +
Package Size 1
Shipping State Illinois
Application Mod Bottom Tapping, Cut Tapping, Tapping
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Thread Limit 2B/3B
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Dimension Standard DIN/DIN
Tap Square 0.3540
Thread Size M14
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Tool Material Steel
Overall Len 3.9370 100.00MM
Drill Range 0.5102 12.96MM - 0.5205 13.22MM
Thread Type Metric
Shank/Pilot Dia 0.4720 11.99MM
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Flute Direction R - Right
Flutes/Inserts 4
Length Type Standard
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Mold Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Medical Yes
Multi Spindle Yes
