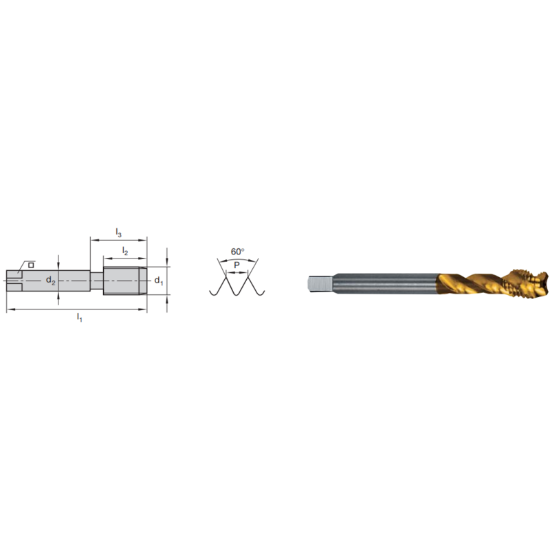

Picture of LMT FETTE 1400165 M12-1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1400165 M12-1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1400165
Delivery date: 3-5 days
$82.30

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Tapping, Cut Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Shipping State Illinois
Coating TiCN +
Package Size 1
Dimensional Specifications
Thread Size M12
Dimension Standard DIN/DIN
Tool Material Steel
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Flute Direction R - Right
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Overall Len 3.9370 100.00MM
Length Type Standard
Shank/Pilot Dia 0.3940 10.01MM
Drill Range 0.4315 10.96MM - 0.4417 11.22MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Limit 2B/3B
Flutes/Inserts 4
Tap Chamfer 2.0P-3.0P
Thread Type Metric
Tap Square 0.3150
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
Multi Spindle Yes
Agricultural YES
Medical Yes
Energy Yes
