  • LMT FETTE 1400164 M10-1.25MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

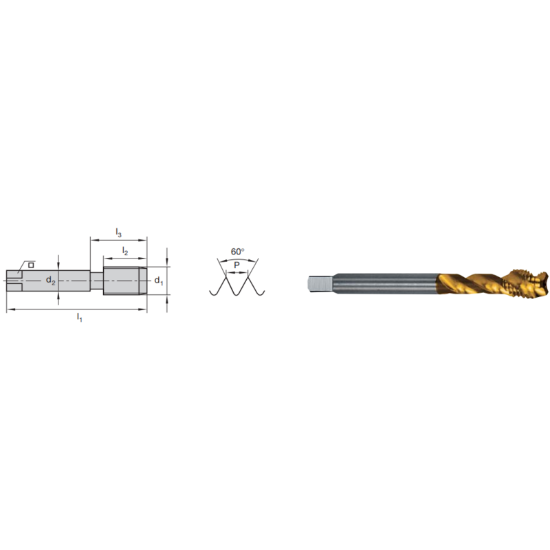

Picture of LMT FETTE 1400164 M10-1.25MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1400164 M10-1.25MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1400164
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN +
Package Size 1
Made In USA No
Shipping State Illinois
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Limit 2B/3B
Flute Direction R - Right
Thread Size M10
Thread Type Metric
Drill Range 0.3425 8.70MM - 0.3555 9.03MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Tool Material Steel
Overall Len 3.9370 100.00MM
Length Type Standard
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Pitch 1.25MM
Tap Square 0.2440
Shank/Pilot Dia 0.3150 8.00MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Medical Yes
Agricultural YES
Energy Yes
Multi Spindle Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
