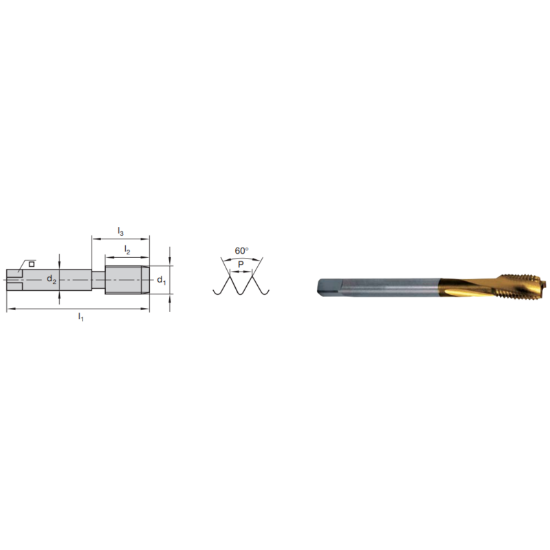

Picture of LMT FETTE 1400155 M12-1.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1400155 M12-1.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1400155
Delivery date: 3-5 days
$143.58

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Mod Bottom Tapping, Cut Tapping, Tapping
Made In USA No
Coating TiCN +
Package Size 1
Shipping State Illinois
Performance Rating High Performance
Dimensional Specifications
Tap Square 0.3150
Thread Type Metric
Thread Limit 2B/3B
Flute Direction R - Right
Flutes/Inserts 4
Drill Range 0.4110 10.44MM - 0.4264 10.83MM
Length Type Standard
Shank/Pilot Dia 0.3940 10.01MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Pitch 1.50MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Tool Material Steel
Overall Len 3.9370 100.00MM
Machine Side Connection Type Tap Collet
Tap Type Mod Bottom
Thread Size M12
Dimension Standard DIN/DIN
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Aerospace Yes
Mold Yes
Multi Spindle Yes
Agricultural YES
Energy Yes
Automotive Yes
Job Shop Yes
Medical Yes
