  • LMT FETTE 1400152 M10-1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

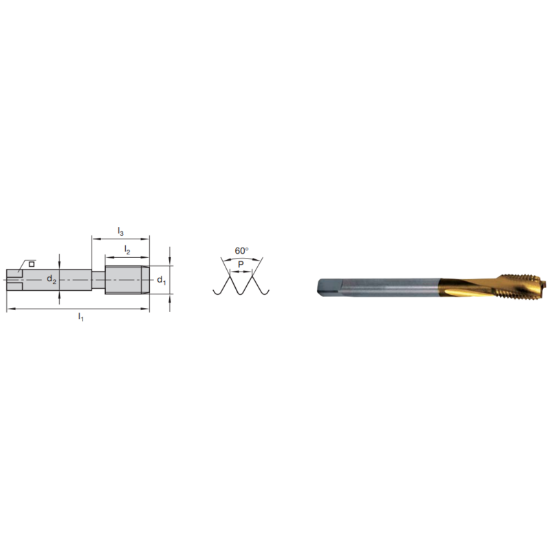

Picture of LMT FETTE 1400152 M10-1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1400152 M10-1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1400152
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Coating TiCN +
Package Size 1
Dimensional Specifications
Flute Direction R - Right
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Overall Len 3.5430 89.99MM
Length Type Standard
Tool Material Steel
Tap Square 0.2440
Dimension Standard DIN/DIN
Flutes/Inserts 3
Drill Range 0.3528 8.96MM - 0.3630 9.22MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Size M10
Thread Type Metric
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Shank/Pilot Dia 0.3150 8.00MM
Thread Limit 2B/3B
Tap Chamfer 2.0P-3.0P
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Automotive Yes
Multi Spindle Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
