  • LMT FETTE 1400151 M8-1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

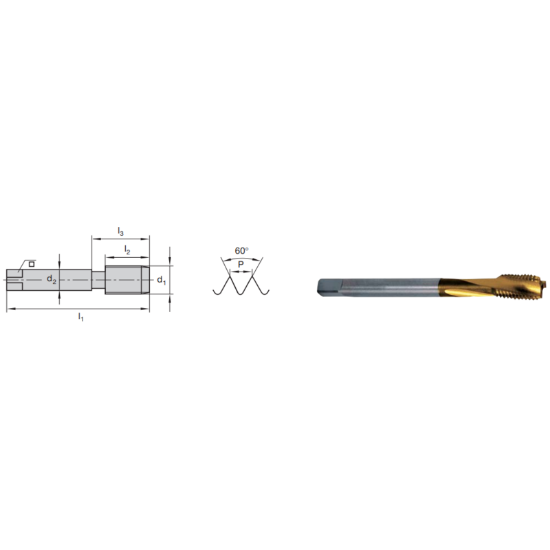

Picture of LMT FETTE 1400151 M8-1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1400151 M8-1.00MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1400151
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Shipping State Illinois
Made In USA No
Coating TiCN +
Package Size 1
Dimensional Specifications
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Pitch 1.00MM
Machine Side Connection Type Tap Collet
Tap Square 0.1930
Tap Type Mod Bottom
Thread Size M8
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Tool Material Steel
Overall Len 3.5430 89.99MM
Thread Limit 2B/3B
Flute Direction R - Right
Drill Range 0.2740 6.96MM - 0.2843 7.22MM
Length Type Standard
Shank/Pilot Dia 0.2360 5.99MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Thread Type Metric
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat HSSE-PM
Industry-Specific Applications
Medical Yes
Automotive Yes
Job Shop Yes
Multi Spindle Yes
Aerospace Yes
Mold Yes
Agricultural YES
Energy Yes
