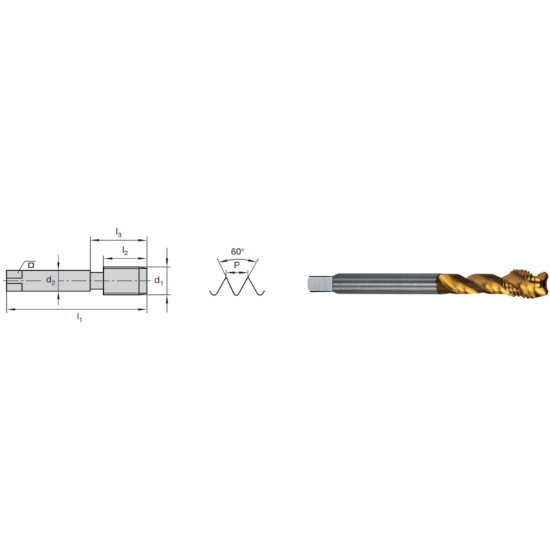

Picture of LMT FETTE 1400136 M10-1.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1400136 M10-1.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1400136
Delivery date: 3-5 days
$74.02

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiCN +
Package Size 1
Shipping State Illinois
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Thread Size M10
Thread Type Metric
Shank/Pilot Dia 0.3940 10.01MM
Tap Style Cut Spiral Flute
Tap Chamfer 2.0P-3.0P
Machine Side Connection Type Tap Collet
Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Tap Type Mod Bottom
Thread Pitch 1.50MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Tool Material Steel
Overall Len 3.9370 100.00MM
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Limit 2B/3B
Flute Direction R - Right
Length Type Standard
Tap Square 0.3150
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Energy Yes
Medical Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Automotive Yes
Multi Spindle Yes
