  • LMT FETTE 1393979 M16-2.00MM Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal TiCN +

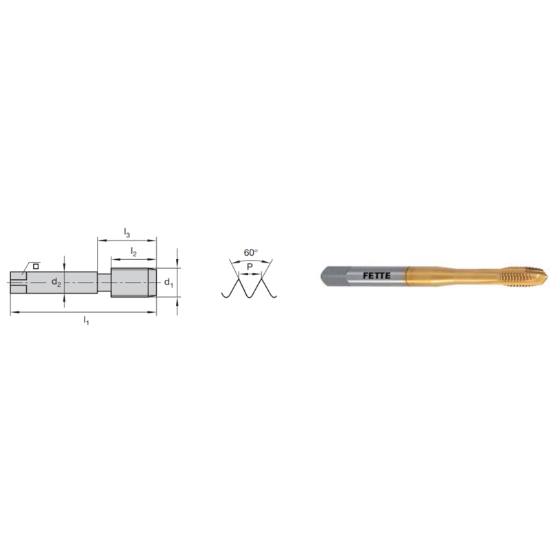

Picture of LMT FETTE 1393979 M16-2.00MM Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal TiCN +

LMT FETTE 1393979 M16-2.00MM Cut Spiral Point Plug 3.5P-5.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1393979
Delivery date: 3-5 days
$76.68

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Plug Tapping, Cut Tapping, Tapping, Through Hole Tapping
Performance Rating High Performance
Coating TiCN +
Package Size 1
Made In USA No
Shipping State Illinois
Dimensional Specifications
Thread Pitch 2.00MM
Tap Chamfer 3.5P-5.0P
Thread Type Metric
Shank/Pilot Dia 0.4720 11.99MM
Tap Type Plug
Thread Limit 6H
Dimension Standard DIN/DIN
Overall Len 4.3310 110.01MM
Flutes/Inserts 3
Tap Square 0.3540
Thread Size M16
Flute Direction R - Right
Length Type Standard
Tool Material Steel
Drill Range 0.5480 13.92MM - 0.5685 14.44MM
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Tap Style Cut Spiral Point
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Multi Spindle Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Medical Yes
