  • LMT FETTE 1390209 M10-1.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

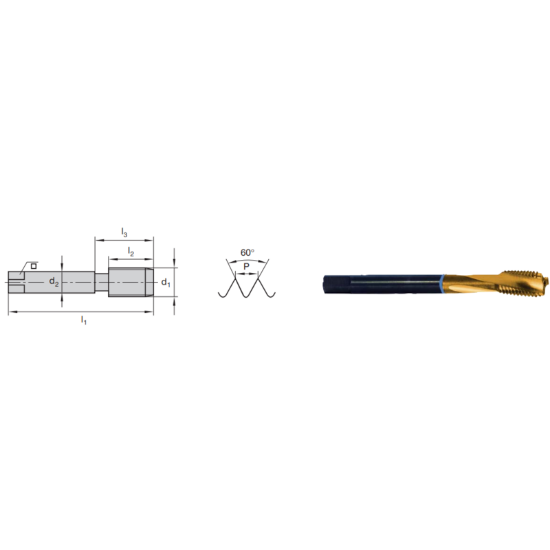

Picture of LMT FETTE 1390209 M10-1.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

LMT FETTE 1390209 M10-1.50MM Cut Spiral Flute Mod Bottom 2.0P-3.0P HSSE-Powder Metal TiCN +

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1390209
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Unlike traditional cutting tools, which are cut, shaved, and shaped from blank ingots, powder-metal tools are built from fine metallic particles, imbuing them with several advantages

Grade and Coating Description

TiCN) PVD coating. Adding carbon to a TiN film increases the hardness nearly 80 percent, resulting in additional tool life.

Products specifications
Attribute name Attribute value
General Product Information
Application Cut Tapping, Tapping, Mod Bottom Tapping
Performance Rating High Performance
Made In USA No
Coating TiCN +
Package Size 1
Shipping State Illinois
Dimensional Specifications
Dimension Standard DIN/DIN
Flutes/Inserts 3
Thread Size M10
Thread Type Metric
Tap Square 0.3150
Flute Direction R - Right
Length Type Standard
Thread Limit 6H
Shank/Pilot Dia 0.3940 10.01MM
Tap Chamfer 2.0P-3.0P
Cut Rating <42HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Machine Side Connection Type Tap Collet
Drill Range 0.3323 8.44MM - 0.3476 8.83MM
Tap Style Cut Spiral Flute
Tap Type Mod Bottom
Thread Pitch 1.50MM
Tool Material Steel
Overall Len 3.9370 100.00MM
Cutting & Machining Properties
Cutting Edge Mat HSSE-PM
Coolant Thru No
Industry-Specific Applications
Multi Spindle Yes
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
