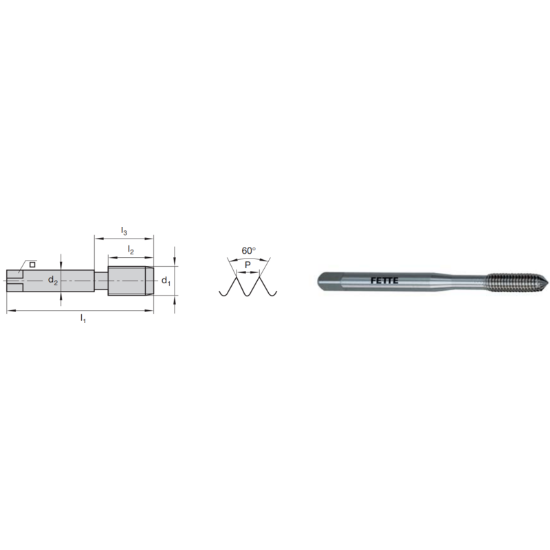

LMT FETTE 1365301 M5-0.80MM Roll Form Mod Bottom 2.0P-3.0P Carbide Uncoated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LMT FETTE
SKU: LMT1365301
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Roll Form Tapping, Tapping, Blind Hole Tapping, Mod Bottom Tapping
Performance Rating High Performance
Shipping State Illinois
Made In USA No
Package Size 1
Dimensional Specifications
Thread Size M5
Dimension Standard DIN/DIN
Tool Material Steel
Drill Range 0.1807 4.59MM - 0.1850 4.70MM
Thread Pitch 0.80MM
Overall Len 2.7560 70.00MM
Cut Rating <40HRC Steel, Aluminum, High Temp, Stainless Steel
Length Type Standard
Tap Style Roll Form
Machine Side Connection Type Tap Collet
Tap Square 0.1930
Tap Type Mod Bottom
Thread Limit 6H
Shank/Pilot Dia 0.2360 5.99MM
Tap Chamfer 2.0P-3.0P
Thread Type Metric
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Automotive Yes
Multi Spindle Yes
Medical Yes
Agricultural YES
Energy Yes
