  • LINK CO-TN-420 1/2 X 4 Cobalt 120° Spot & Center Drill , TIN Coated

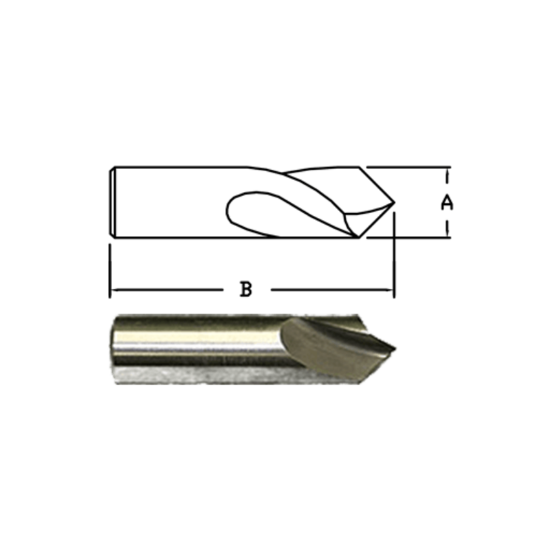

Picture of LINK CO-TN-420 1/2 X 4 Cobalt 120° Spot & Center Drill , TIN Coated

LINK CO-TN-420 1/2 X 4 Cobalt 120° Spot & Center Drill , TIN Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LINK
SKU: LINCO-TN-420
Delivery date: 3-5 days
$56.61

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Spot Drilling, Center Drilling, Drilling
Coating TiN
Shipping State Michigan
Package Size 1
Made In USA Yes
Dimensional Specifications
Cut Dia Min 0.5000 12.70MM - 1/2
Included Angle 120°
Cutter Dia 0.5000 12.70MM - 1/2
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Tool Material Cobalt
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
