  • LINK CO-TN-380 1/4 X 4 Cobalt 90° Spot & Center Drill , TIN Coated

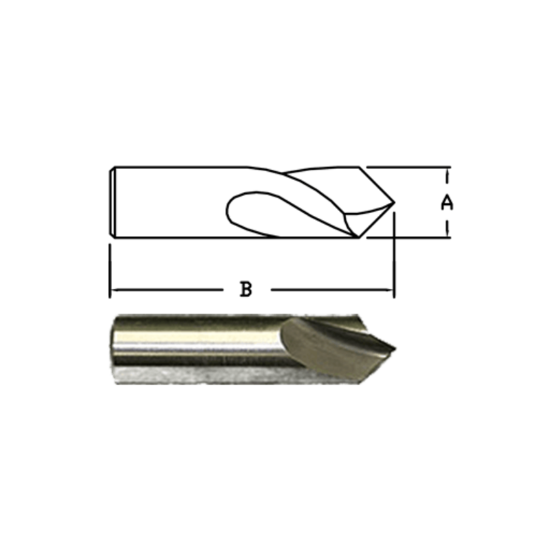

Picture of LINK CO-TN-380 1/4 X 4 Cobalt 90° Spot & Center Drill , TIN Coated

LINK CO-TN-380 1/4 X 4 Cobalt 90° Spot & Center Drill , TIN Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LINK
SKU: LINCO-TN-380
Delivery date: 3-5 days
$51.12

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Center Drilling, Drilling, Spot Drilling
Coating TiN
Made In USA Yes
Shipping State Michigan
Package Size 1
Dimensional Specifications
Flutes/Inserts 2
Cutter Dia 0.2500 6.35MM - 1/4 - E
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Cut Dia Min 0.2500 6.35MM - 1/4 - E
Tool Material Cobalt
Included Angle 90°
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
