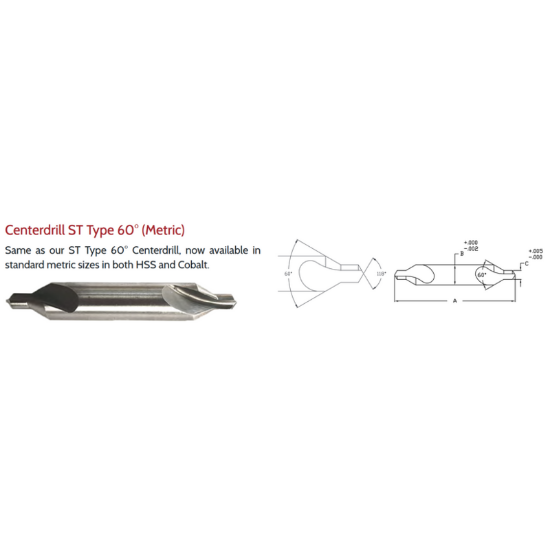

LINK CO-TL-011 1.25X3.15 Metric ST-Type DED Cobalt Center Drill , TIALN Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LINK
SKU: LINCO-TL-011
Delivery date: 3-5 days
$21.38

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Grade and Coating Description

Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:

Products specifications
Attribute name Attribute value
General Product Information
Application Center Drilling, Drilling
Coating TiAlN
Made In USA Yes
Shipping State Michigan
Package Size 1
Dimensional Specifications
Included Angle 60°
Cut Dia Min 0.0492 1.25MM
Flutes/Inserts 2
Cutter Dia 0.0492 1.25MM
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Tool Material Cobalt
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
