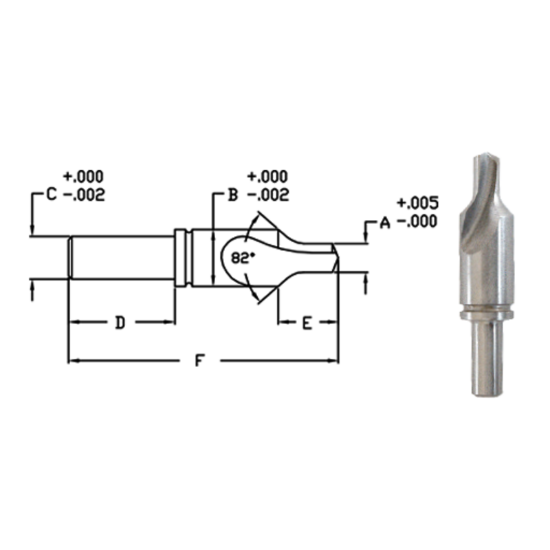

LINK 55-TN-198 5/8 English 82D SED HSS Screw Countersink, TIN Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LINK
SKU: LIN55-TN-198
Delivery date: 3-5 days
$99.70

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Countersinking
Package Size 1
Coating TiN
Shipping State Michigan
Dimensional Specifications
Cutter Dia 0.6250 15.88MM - 5/8
Tool Material High Speed Steel
Flutes/Inserts 2
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Cut Dia Min 0.6250 15.88MM - 5/8
Included Angle 82°
Cutting & Machining Properties
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
