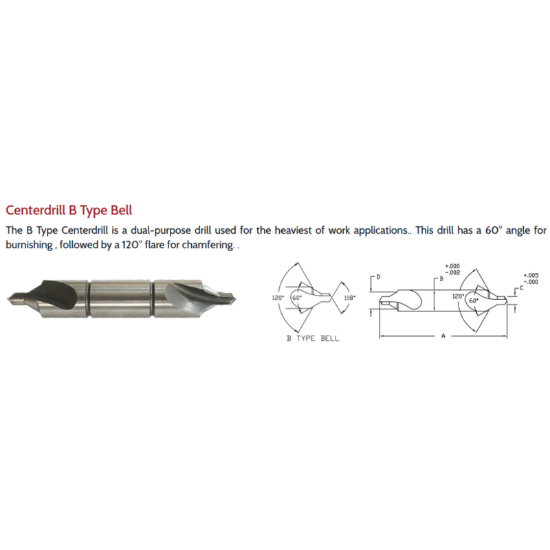

LINK 25-TN-140 14B Type DED HSS Center Drill , TIN Coated

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LINK
SKU: LIN25-TN-140
Delivery date: 3-5 days
$12.23

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Grade and Coating Description

Titanium nitride (TiN) coating is wear resistant, inert & reduces friction. Used on cutting tools punches etc improving tool life 2-10x over uncoated tools

Products specifications
Attribute name Attribute value
General Product Information
Application Center Drilling, Drilling
Coating TiN
Made In USA Yes
Shipping State Michigan
Package Size 1
Dimensional Specifications
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Cut Dia Min 0.1820 4.62MM - #14
Included Angle 120°
Cutter Dia 0.1820 4.62MM - #14
Tool Material High Speed Steel
Flutes/Inserts 2
Cutting & Machining Properties
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
