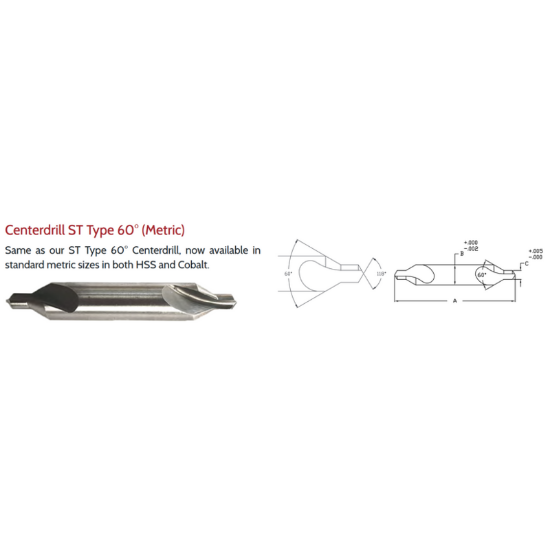

LINK 23-L2-013 8.0X20.0 Metric ST-Type DED HSS Center Drill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LINK
SKU: LIN23-L2-013
Delivery date: 3-5 days
$44.77

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Center Drilling
Made In USA Yes
Shipping State Michigan
Package Size 1
Dimensional Specifications
Cut Dia Min 0.3150 8.00MM
Cutter Dia 0.3150 8.00MM
Tool Material High Speed Steel
Flutes/Inserts 2
Included Angle 60°
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Cutting & Machining Properties
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
