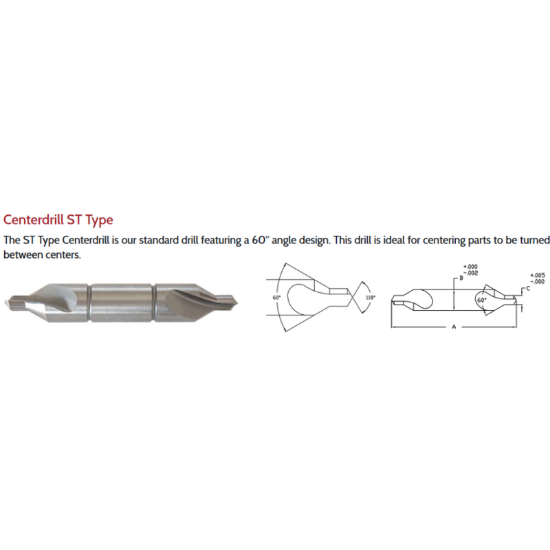

LINK 20-T5-123 4ST4 Type DED Powder Metal T-15 HSS Center Drill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LINK
SKU: LIN20-T5-123
Delivery date: 3-5 days
$47.47

Cutting Edge Definition

The abbreviation PM in HSS-PM does not refer to the alloying constituents of the high speed steel, but to the method of manufacture. The liquid steel melt is atomized by means of nitrogen. The powder is then hot isostatically pressed (so-called HIP process) and then brought into the respective shape by forging and rolling as in conventional steel production. The advantages of steel result from the more uniform and finer carbide distribution (carbide = hard materials in steel). This makes the material easier to machine. In application, however, it is still wear-resistant and has a high hot hardness.

Products specifications
Attribute name Attribute value
General Product Information
Application Drilling, Center Drilling
Shipping State Michigan
Package Size 1
Made In USA Yes
Dimensional Specifications
Cutter Dia 0.2090 5.31MM - #4
Cut Dia Min 0.2090 5.30MM - #4
Flutes/Inserts 2
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Tool Material Powder Metal
Included Angle 60°
Cutting & Machining Properties
Cutting Edge Mat Powder Metal
Industry-Specific Applications
Job Shop Yes
