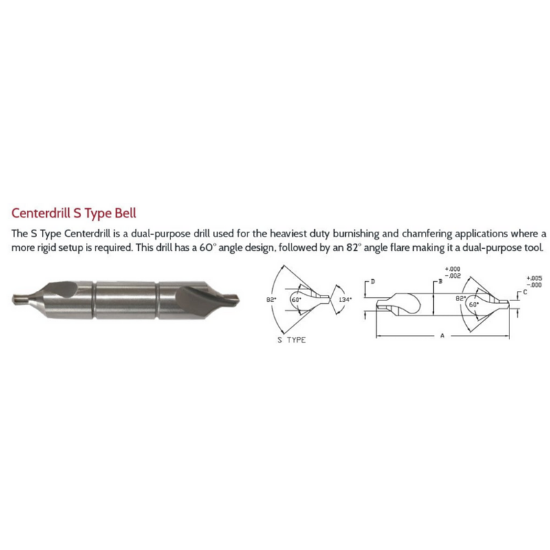

LINK 11-L2-077 13S6 Type LH DED HSS Center Drill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: LINK
SKU: LIN11-L2-077
Delivery date: 3-5 days
$37.48

Cutting Edge Definition

High speed steels (often abbreviated HSS) are ferrous based alloys of the Fe–C–X multicomponent system where X represents a group of alloying elements comprising mainly Cr, W or Mo, V, and Co. These steels are mainly used for cutting tools, since they are characterized by their capacity to retain a high level of hardness while cutting metals at high speed. Generally, the X component is present in excess of 7%, along with more than 0.60% carbon.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 1
Shipping State Michigan
Application Drilling, Center Drilling
Dimensional Specifications
Cut Dia Min 0.1850 4.70MM - #13
Flutes/Inserts 2
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron
Cutter Dia 0.1850 4.70MM - #13
Included Angle 82°
Tool Material High Speed Steel
Cutting & Machining Properties
Cutting Edge Mat HSS
Industry-Specific Applications
Job Shop Yes
