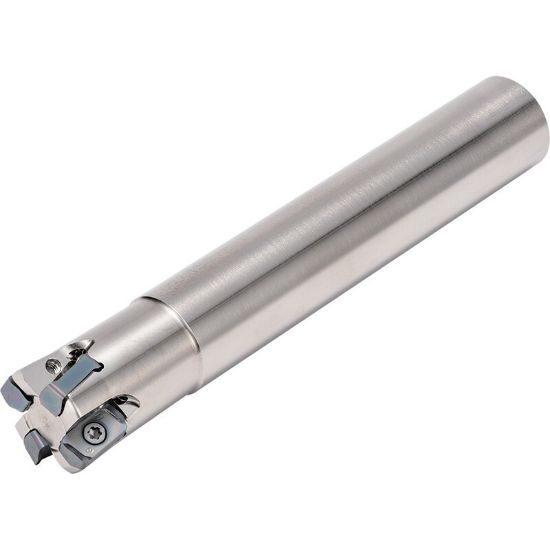

Picture of KYOCERA MFH32S32035T200 Feed Mill 1.260 Diameter 1.259 Shank 7.874 OAL 5 Flute

KYOCERA MFH32S32035T200 Feed Mill 1.260 Diameter 1.259 Shank 7.874 OAL 5 Flute

ANSI: MFH32S32035T200

ISO: MFH32S32035T200

Need Assistance or Service? Please call 262-251-4020

Manufacturer: KYOCERA
SKU: KYO8844047
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Shipping State Illinois
Made In USA No
Application Face Milling, Ramp Milling, Slot Milling, Copy Milling, Feed Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Insert Size Ic 3
Cut Dia Min 0.9449 24.00MM
Machine Side Connection Size 1.2598 32.00MM
Overall Len 7.8740 200.00MM
Shank/Pilot Dia 1.2598 32.00MM
Cutter Dia 1.2600 32.00MM
Neck Length 4.7200 119.89MM
Machine Side Connection Type Cylindrical
Flutes/Inserts 5
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Barbell
Insert Style LO
