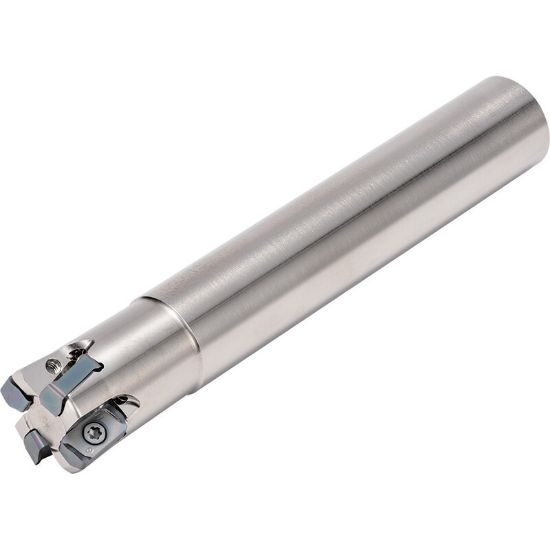

Picture of KYOCERA MFH25W25035T Feed Mill 0.984 Diameter 0.984 Shank 4.606 OAL 5 Flute

KYOCERA MFH25W25035T Feed Mill 0.984 Diameter 0.984 Shank 4.606 OAL 5 Flute

ANSI: MFH25W25035T

ISO: MFH25W25035T

Need Assistance or Service? Please call 262-251-4020

Manufacturer: KYOCERA
SKU: KYO8609149
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Copy Milling, Feed Milling, Ramp Milling, Slot Milling
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 3
Neck Length 2.3622 60.00MM
Tool Material Steel
Overall Len 4.6063 117.00MM
Flutes/Inserts 5
Cutter Dia 0.9840 24.99MM
Machine Side Connection Type Cylindrical
Cut Dia Min 0.6693 17.00MM
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Cutting & Machining Properties
Insert Style LO
Insert Shape/Cutter Pocket Shape Barbell
