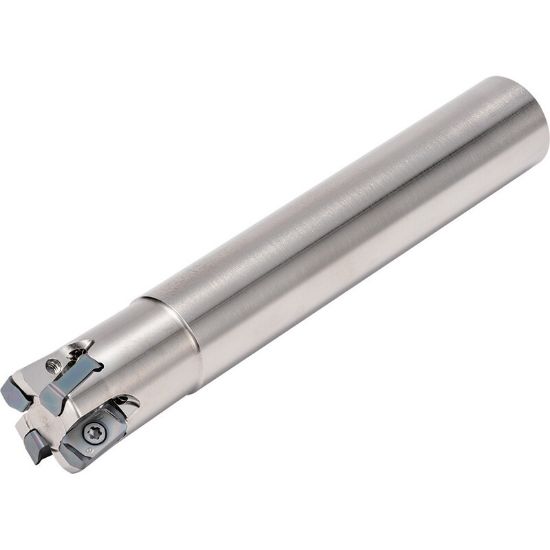

Picture of KYOCERA MFH1000W100035T47 Feed Mill 1.000 Diameter 1.000 Shank 4.820 OAL 5 Flute

KYOCERA MFH1000W100035T47 Feed Mill 1.000 Diameter 1.000 Shank 4.820 OAL 5 Flute

ANSI: MFH1000W100035T47

ISO: MFH1000W100035T47

Need Assistance or Service? Please call 262-251-4020

Manufacturer: KYOCERA
SKU: KYO8607040
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Face Milling, Slot Milling, Copy Milling, Feed Milling
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Cut Dia Min 0.6850 17.40MM
Neck Length 2.5000 63.50MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 4.8200 122.43MM
Insert Size Ic 3
Cutter Dia 1.0000 25.40MM
Tool Material Steel
Flutes/Inserts 5
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Barbell
Insert Style LO
