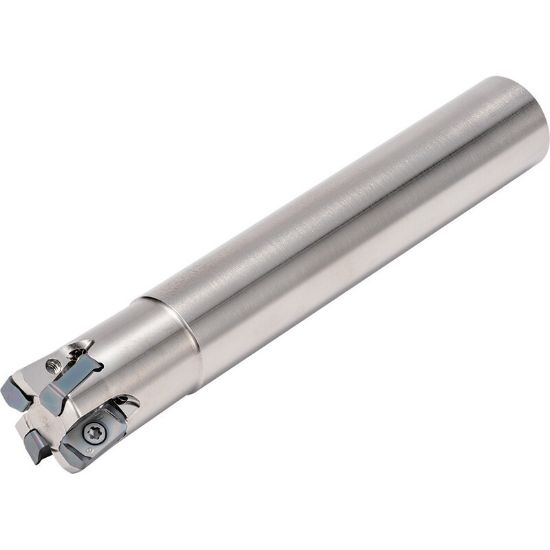

Picture of KYOCERA MFH1000S100034T7 Feed Mill 1.000 Diameter 1.000 Shank 7.000 OAL 4 Flute

KYOCERA MFH1000S100034T7 Feed Mill 1.000 Diameter 1.000 Shank 7.000 OAL 4 Flute

ANSI: MFH1000S100034T7

ISO: MFH1000S100034T7

Need Assistance or Service? Please call 262-251-4020

Manufacturer: KYOCERA
SKU: KYO8607012
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Face Milling, Copy Milling, Feed Milling, Ramp Milling, Slot Milling
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 3
Neck Length 4.0000 101.60MM
Overall Len 7.0000 177.80MM
Flutes/Inserts 4
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Min 0.6850 17.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutter Dia 1.0000 25.40MM
Tool Material Steel
Cutting & Machining Properties
Insert Style LO
Insert Shape/Cutter Pocket Shape Barbell
