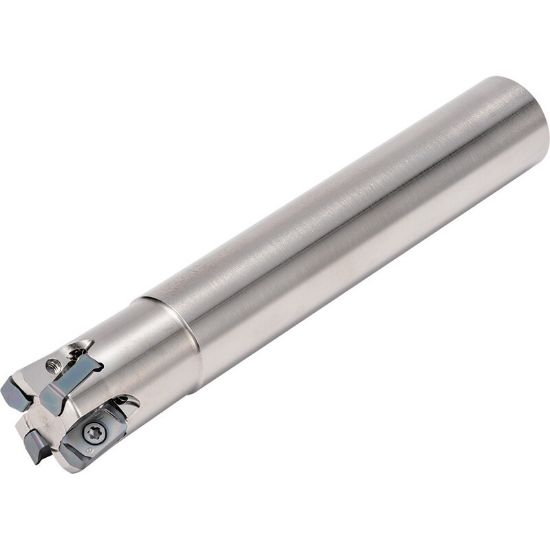

Picture of KYOCERA MFH0875S750033T55 Feed Mill 0.750 Diameter 0.750 Shank 5.500 OAL 3 Flute

KYOCERA MFH0875S750033T55 Feed Mill 0.750 Diameter 0.750 Shank 5.500 OAL 3 Flute

ANSI: MFH0875S750033T55

ISO: MFH0875S750033T55

Need Assistance or Service? Please call 262-251-4020

Manufacturer: KYOCERA
SKU: KYO8609375
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Feed Milling, Face Milling, Ramp Milling, Slot Milling
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 5.5000 139.70MM
Cut Dia Min 0.5600 14.22MM
Flutes/Inserts 3
Insert Size Ic 3
Neck Length 2.0000 50.80MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Barbell
Insert Style LO
