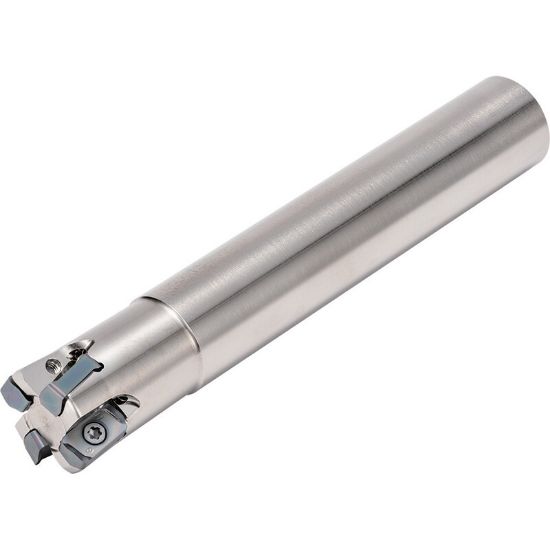

Picture of KYOCERA MFH0750W750033T4 Feed Mill 0.750 Diameter 0.750 Shank 4.070 OAL 3 Flute

KYOCERA MFH0750W750033T4 Feed Mill 0.750 Diameter 0.750 Shank 4.070 OAL 3 Flute

ANSI: MFH0750W750033T4

ISO: MFH0750W750033T4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: KYOCERA
SKU: KYO8607037
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Application Ramp Milling, Slot Milling, Face Milling, Copy Milling, Feed Milling
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 3
Neck Length 2.0000 50.80MM
Flutes/Inserts 3
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Overall Len 4.0700 103.38MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Type Cylindrical
Cut Dia Min 0.4350 11.05MM
Cutting & Machining Properties
Insert Style LO
Insert Shape/Cutter Pocket Shape Barbell
