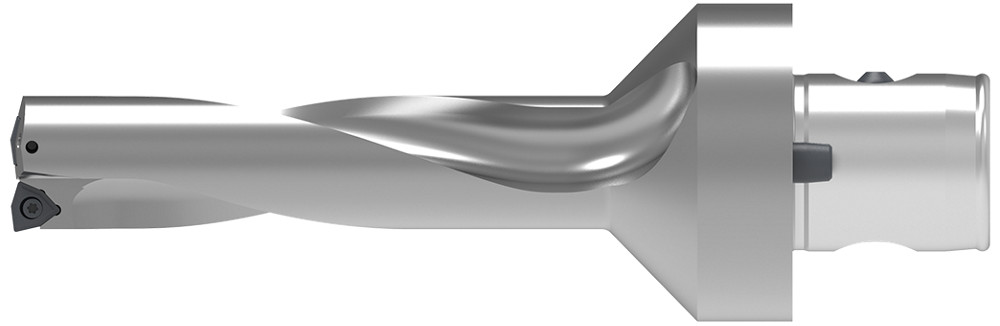

Picture of KOMET/Ceratizit 1589442895 KUB Trigon ABS50/W2934/1.687/6.772 R Indexable Drill Multi Insert 1.6875 42.86mm - 1-11/16 Dia 4.0x Dia Thru Coolant V30 94291

KOMET/Ceratizit 1589442895 KUB Trigon ABS50/W2934/1.687/6.772 R Indexable Drill Multi Insert 1.6875 42.86mm - 1-11/16 Dia 4.0x Dia Thru Coolant V30 94291

Part Number: CER1589442895 ISO: KUB Trigon ABS50/W2934/1.687/6.772 R
Tool Cross-Reference
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1585487
Vendor: Sussex Tool and Supply
$1,021.18
Products specifications
Attribute name Attribute value
General Information
Shipping State New Jersey
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Flute Direction LEFT
Drill Type Indexable Drill
Coolant Type Through
Type Indexable Drill Multi Insert
Dimensions & Sizing
Overall Length 9.9409 252.50MM
Flutes/Inserts 2
Tool Dia 1.6875 42.86MM - 1-11/16
Flute Length 6.9608 176.80MM
Dia Deep 4.0x Dia
Flange Dia 50MM
Performance & Capacity
Drill DOC 6.7640 171.80MM
