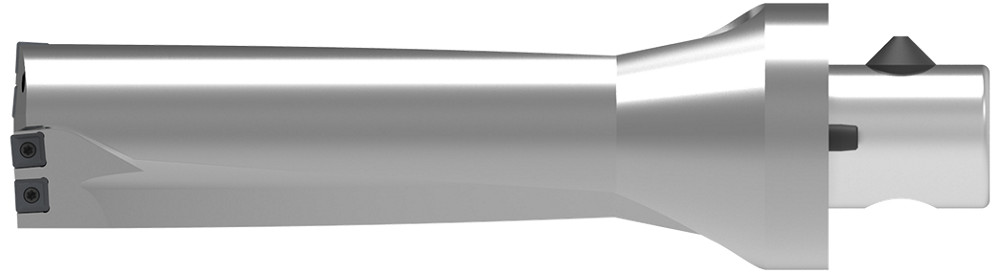

Picture of KOMET/Ceratizit 1588047696 KUB Quatron ABS63/W8323/47,6/144/R Indexable Drill Multi Insert 1.8750 47.63mm - 1-7/8 Dia 3.0x Dia Thru Coolant U12 34760

KOMET/Ceratizit 1588047696 KUB Quatron ABS63/W8323/47,6/144/R Indexable Drill Multi Insert 1.8750 47.63mm - 1-7/8 Dia 3.0x Dia Thru Coolant U12 34760

Part Number: CER1588047696 ISO: KUB Quatron ABS63/W8323/47,6/144/R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: KOMET/CERATIZIT
SKU: 1585311
Vendor: Sussex Tool and Supply
$1,385.01
Products specifications
Attribute name Attribute value
Shipping State New Jersey
Made In USA NO
Cutter Type Drill
Machine Side Connection Type ABS
Mach Side Connection Size 63
Overall Length 9.3309 237.01MM
Coolant Thru Thru Coolant
Flutes/Inserts 4
Tool Dia 1.8750 47.63MM - 1-7/8
Flute Length 6.0233 152.99MM
Dia Deep 3.0x Dia
Flute Direction LEFT
Drill Type Indexable Drill
Coolant Type Through
Flange Dia 63MM
Type Indexable Drill Multi Insert
Drill DOC 5.6690 143.99MM
