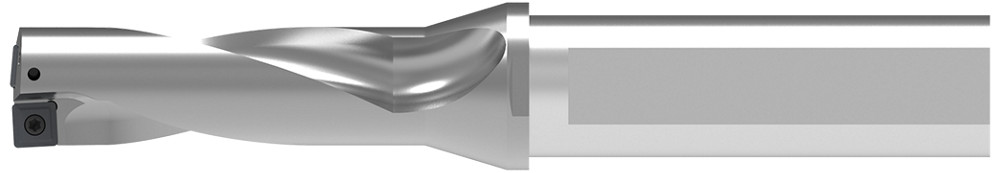

Picture of KOMET/Ceratizit 1588039701 KUB Quatron 1.25x3.25/W8344/1.562/4.724R Indexable Drill Multi Insert 1.5625 39.69mm - 1-9/16 Dia 3.0x Dia Thru Coolant U12 23972

KOMET/Ceratizit 1588039701 KUB Quatron 1.25x3.25/W8344/1.562/4.724R Indexable Drill Multi Insert 1.5625 39.69mm - 1-9/16 Dia 3.0x Dia Thru Coolant U12 23972

Part Number: CER1588039701 ISO: KUB Quatron 1.25x3.25/W8344/1.562/4.724R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: KOMET/CERATIZIT
SKU: 1585507
Vendor: Sussex Tool and Supply
$986.58
Products specifications
Attribute name Attribute value
Shipping State New Jersey
Made In USA NO
Cutter Type Drill
Machine Side Connection Type Boring Bar
Mach Side Connection Size 1.2500 31.75MM - 1-1/4
Overall Length 9.5100 241.55MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.5625 39.69MM - 1-9/16
Flute Length 4.9208 124.99MM
Dia Deep 3.0x Dia
Flute Direction LEFT
Drill Type Indexable Drill
Coolant Type Through
Flange Dia 39.116MM
Type Indexable Drill Multi Insert
Drill DOC 4.7240 119.99MM
