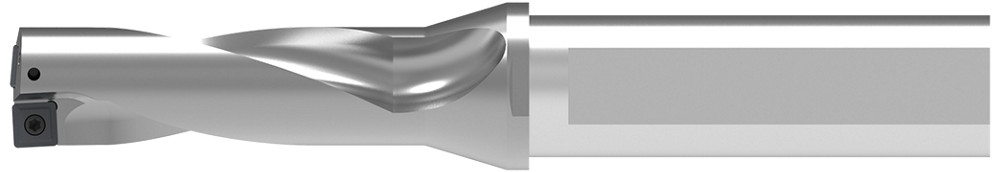

Picture of KOMET/Ceratizit 1588038901 KUB Quatron 1.25x3.25/W8344/1.531/4.606R Indexable Drill Multi Insert 1.5312 38.90mm - 1-17/32 Dia 3.0x Dia Thru Coolant U12 23892

KOMET/Ceratizit 1588038901 KUB Quatron 1.25x3.25/W8344/1.531/4.606R Indexable Drill Multi Insert 1.5312 38.90mm - 1-17/32 Dia 3.0x Dia Thru Coolant U12 23892

Part Number: CER1588038901 ISO: KUB Quatron 1.25x3.25/W8344/1.531/4.606R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: KOMET/CERATIZIT
SKU: 1585506
Vendor: Sussex Tool and Supply
$986.58
Products specifications
Attribute name Attribute value
Shipping State New Jersey
Made In USA NO
Cutter Type Drill
Machine Side Connection Type Boring Bar
Mach Side Connection Size 1.2500 31.75MM - 1-1/4
Overall Length 9.3920 238.56MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.5312 38.90MM - 1-17/32
Flute Length 4.8028 121.99MM
Dia Deep 3.0x Dia
Flute Direction LEFT
Drill Type Indexable Drill
Coolant Type Through
Flange Dia 39.116MM
Type Indexable Drill Multi Insert
Drill DOC 4.6059 116.99MM
