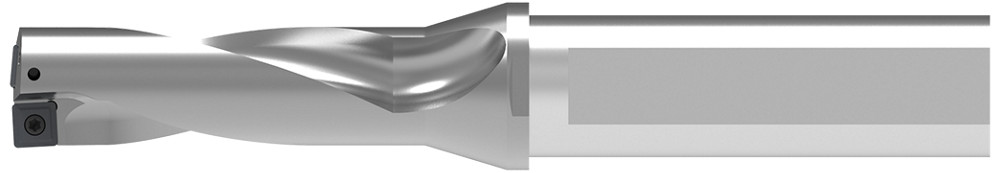

Picture of KOMET/Ceratizit 1588037301 KUB Quatron 1.25x3.25/W8344/1.469/4.488R Indexable Drill Multi Insert 1.4688 37.31mm - 1-15/32 Dia 3.0x Dia Thru Coolant U12 23732

KOMET/Ceratizit 1588037301 KUB Quatron 1.25x3.25/W8344/1.469/4.488R Indexable Drill Multi Insert 1.4688 37.31mm - 1-15/32 Dia 3.0x Dia Thru Coolant U12 23732

Part Number: CER1588037301 ISO: KUB Quatron 1.25x3.25/W8344/1.469/4.488R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: KOMET/CERATIZIT
SKU: 1585504
Vendor: Sussex Tool and Supply
$986.58
Products specifications
Attribute name Attribute value
Shipping State New Jersey
Made In USA NO
Cutter Type Drill
Machine Side Connection Type Boring Bar
Mach Side Connection Size 1.2500 31.75MM - 1-1/4
Overall Length 9.2740 235.56MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Tool Dia 1.4688 37.31MM - 1-15/32
Flute Length 4.6848 118.99MM
Dia Deep 3.0x Dia
Flute Direction LEFT
Drill Type Indexable Drill
Coolant Type Through
Flange Dia 39.116MM
Type Indexable Drill Multi Insert
Drill DOC 4.4879 113.99MM
