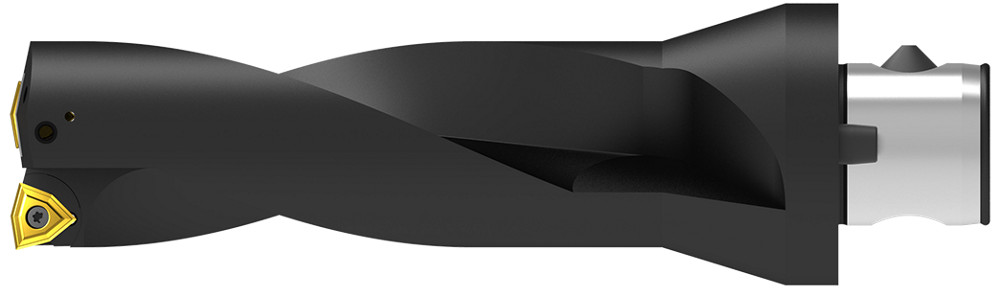

Picture of KOMET/Ceratizit 1089346096 KUB Drill ABS63KUB 1/46/138R48; Indexable Drill Multi Insert 1.8110 46.00mm Dia 3.0x Dia Thru Coolant V13 74600

KOMET/Ceratizit 1089346096 KUB Drill ABS63KUB 1/46/138R48; Indexable Drill Multi Insert 1.8110 46.00mm Dia 3.0x Dia Thru Coolant V13 74600

Part Number: CER1089346096 ISO: KUB Drill ABS63KUB 1/46/138R48; ANSI:KUB-T.3D.1812.R.08.ABS63
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1584441
Vendor: Sussex Tool and Supply
$1,172.10
Products specifications
Attribute name Attribute value
General Information
Shipping State New Jersey
Made In USA NO
Cutter Type Drill
Coolant Thru Thru Coolant
Flute Direction LEFT
Drill Type Indexable Drill
Coolant Type Through
Type Indexable Drill Multi Insert
Dimensions & Sizing
Overall Length 9.0944 231.00MM
Flutes/Inserts 2
Tool Dia 1.8110 46.00MM
Flute Length 5.6299 143.00MM
Dia Deep 3.0x Dia
Flange Dia 63MM
Performance & Capacity
Drill DOC 5.4330 138.00MM
