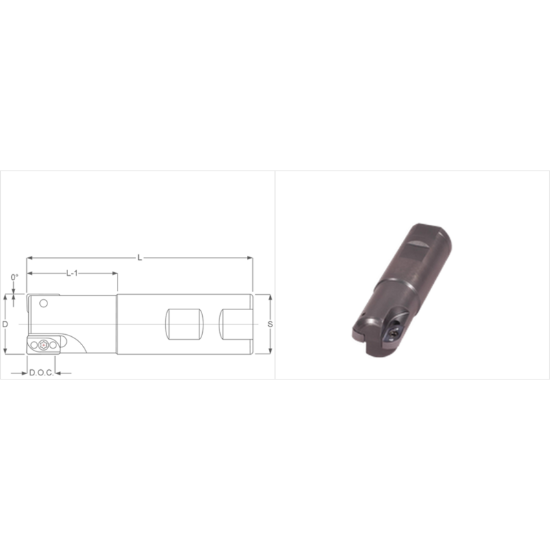

Picture of K-Tool XRM-1000B Milling Cutter 90.0° 1.000 Cutter Diameter 1.000 Weldon

K-Tool XRM-1000B Milling Cutter 90.0° 1.000 Cutter Diameter 1.000 Weldon

ANSI: XRM-1000B

ISO: XRM-1000B

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOXRM-1000B
Delivery date: 3-5 days
$229.59
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application Roughing, Semi Finishing
Insert/Tool Tool
Shipping State Pennsylvania
Application Side Milling, Copy Milling, Face Milling
Made In USA Yes
Insert Type Positive
Dimensional Specifications
Flutes/Inserts 2
Cutter Dia 1.0000 25.40MM
Tool Material Steel
Neck Length 3.0000 76.20MM
Depth Of Cut Max 0.5400
Machine Side Connection Type Weldon
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 5.2500 133.35MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style MG
Fasteners & Connectors
Insert Screw 560T
