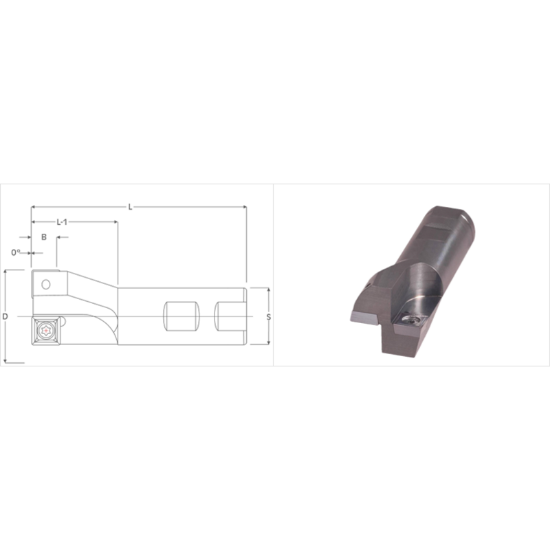

Picture of K-Tool XDM-752 Milling Cutter 90.0°, Drill Mill 0.750 Cutter Diameter 0.750 Weldon

K-Tool XDM-752 Milling Cutter 90.0°, Drill Mill 0.750 Cutter Diameter 0.750 Weldon

ANSI: XDM-752

ISO: XDM-752

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOXDM-752
Delivery date: 3-5 days
$146.51

Features And Benefits

Cuts a flat bottom within .001 - Uses the same insert in both pockets - Center cutting - Drill from solid or ramp into a part at any angle - Ideal for pocket milling - Drilling shallow depth flat bottom holes - 4 cutting edges per insert

Details

Drill Mill Twins Can Be Modified In 2 - 3 Working Days Modifications Include: - Reduced Shank Diameter - Add Coolant Thru

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Drilling, Ramp Milling, Side Milling, Plunge Milling, Shoulder Milling, Slot Milling, Pocket Milling
Made In USA Yes
Package Size 1
Insert Type Positive
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Depth Of Cut Max 0.2350
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Machine Side Connection Type Weldon
Flutes/Inserts 2
Neck Length 1.5000 38.10MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 4.2500 107.95MM
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 314T
