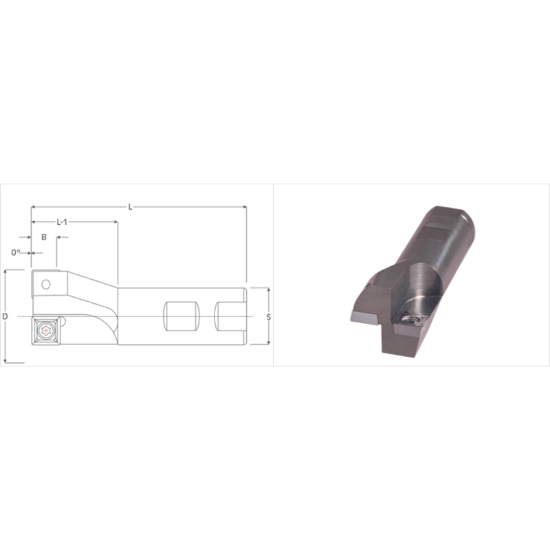

Picture of K-Tool XDM-2000 Milling Cutter 90.0°, Drill Mill 2.000 Cutter Diameter 1.250 Weldon

K-Tool XDM-2000 Milling Cutter 90.0°, Drill Mill 2.000 Cutter Diameter 1.250 Weldon

ANSI: XDM-2000

ISO: XDM-2000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOXDM-2000
Delivery date: 3-5 days
$211.72

Features And Benefits

Cuts a flat bottom within .001 - Uses the same insert in both pockets - Center cutting - Drill from solid or ramp into a part at any angle - Ideal for pocket milling - Drilling shallow depth flat bottom holes - 4 cutting edges per insert

Details

Drill Mill Twins Can Be Modified In 2 - 3 Working Days Modifications Include: - Reduced Shank Diameter - Add Coolant Thru

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Plunge Milling, Shoulder Milling, Side Milling, Drilling, Pocket Milling, Ramp Milling, Slot Milling
Insert Application Semi Finishing, Roughing
Made In USA Yes
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Weldon
Machine Side Connection Size 1.2500 31.75MM
Tool Material Steel
Neck Length 1.5000 38.10MM
Flutes/Inserts 2
Depth Of Cut Max 0.7100
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 5.5000 139.70MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 1012T
