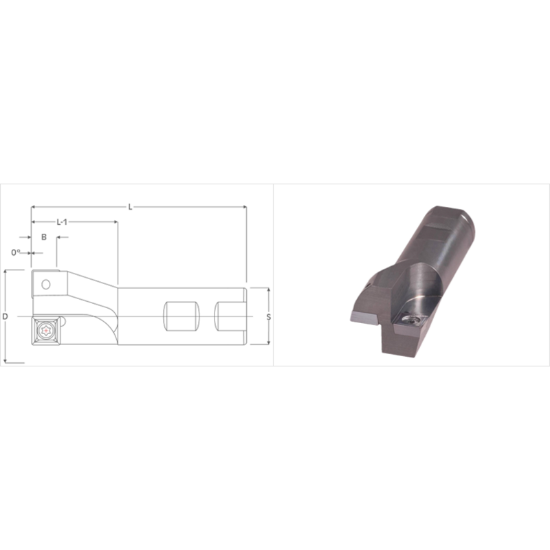

Picture of K-Tool XDM-1000 Milling Cutter 90.0°, Drill Mill 1.000 Cutter Diameter 1.000 Weldon

K-Tool XDM-1000 Milling Cutter 90.0°, Drill Mill 1.000 Cutter Diameter 1.000 Weldon

ANSI: XDM-1000

ISO: XDM-1000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOXDM-1000
Delivery date: 3-5 days
$149.19

Features And Benefits

Cuts a flat bottom within .001 - Uses the same insert in both pockets - Center cutting - Drill from solid or ramp into a part at any angle - Ideal for pocket milling - Drilling shallow depth flat bottom holes - 4 cutting edges per insert

Details

Drill Mill Twins Can Be Modified In 2 - 3 Working Days Modifications Include: - Reduced Shank Diameter - Add Coolant Thru

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Drilling, Plunge Milling, Pocket Milling, Shoulder Milling, Slot Milling
Insert Application Roughing, Semi Finishing
Package Size 1
Made In USA Yes
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Dimensional Specifications
Overall Len 5.2500 133.35MM
Cutter Dia 1.0000 25.40MM
Neck Length 2.0000 50.80MM
Flutes/Inserts 2
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Machine Side Connection Type Weldon
Depth Of Cut Max 0.3400
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 414T
