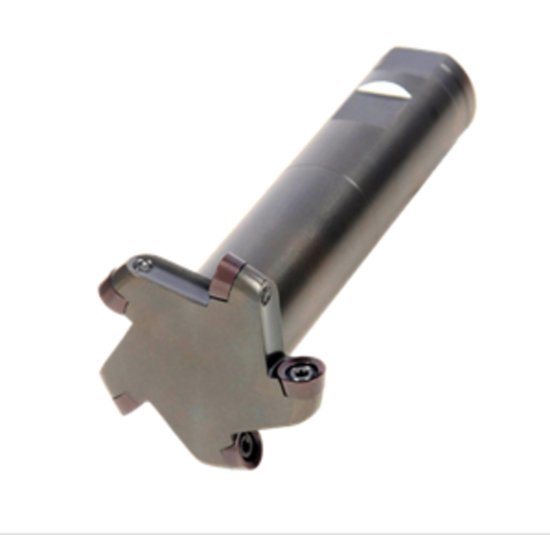

Picture of K-Tool TSR-2504 Milling Cutter 2.500 Cutter Diameter 1.000 Weldon

K-Tool TSR-2504 Milling Cutter 2.500 Cutter Diameter 1.000 Weldon

Part Number: KTOTSR-2504 ISO: TSR-2504 ANSI:TSR-2504
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$450.24
SKU: 1013360

Description

K-TOOL TSR-2504 Round Slot Mill Slot Mill Weldon 1.0000 Positive 2.5000 63.50MM - 2-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Slot Mill Cutter
Type Of Tool Slot Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style RC
Insert Shape/Cutter Pocket Shape Round
Insert Type Positive
Insert Screw 838T
Dimensions & Sizing
Overall Length 4.6250 117.48MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 4
Tool Dia 2.5000 63.50MM - 2-1/2
Neck Length 2.3750 60.33MM
Tool Width 0.5000
Neck Dia 1
Materials & Finish
Tool Material Steel
