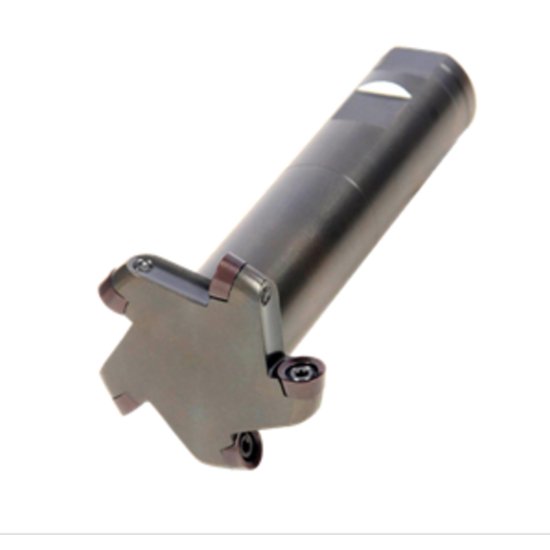

Picture of K-Tool TSR-1525 Milling Cutter 1.500 Cutter Diameter 1.000 Weldon

K-Tool TSR-1525 Milling Cutter 1.500 Cutter Diameter 1.000 Weldon

Part Number: KTOTSR-1525 ISO: TSR-1525 ANSI:TSR-1525
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$345.72
SKU: 1013346

Description

K-TOOL TSR-1525 Round Slot Mill Slot Mill Weldon 1.0000 Positive 1.5000 38.10MM - 1-1/2Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Slot Mill Cutter
Type Of Tool Slot Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style RC
Insert Shape/Cutter Pocket Shape Round
Insert Type Positive
Insert Screw 314T
Dimensions & Sizing
Overall Length 4.1250 104.78MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 5
Tool Dia 1.5000 38.10MM - 1-1/2
Neck Length 1.8750 47.63MM
Tool Width 0.3120
Neck Dia 0.625
Materials & Finish
Tool Material Steel
