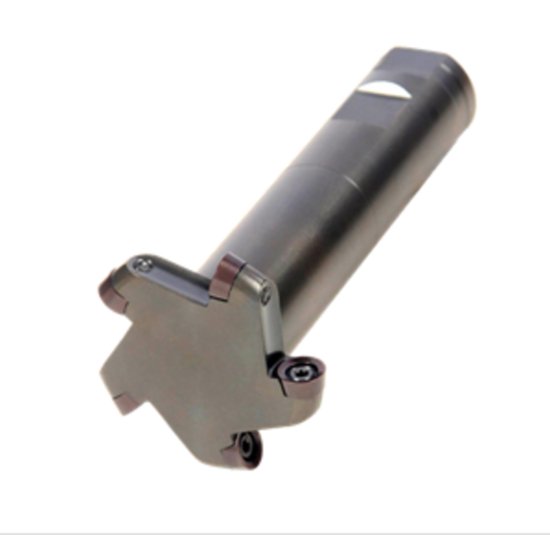

Picture of K-Tool TSR-1003 Milling Cutter 1.000 Cutter Diameter 1.000 Weldon

K-Tool TSR-1003 Milling Cutter 1.000 Cutter Diameter 1.000 Weldon

Part Number: KTOTSR-1003 ISO: TSR-1003 ANSI:TSR-1003
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$284.97
SKU: 1013351

Description

K-TOOL TSR-1003 Round Slot Mill Slot Mill Weldon 1.0000 Positive 1.0000 25.40MM Cutter Dia Steel
Products specifications
Attribute name Attribute value
General Information
Shipping State PENNSYLVANIA
Made In USA YES
Cutter Type Slot Mill Cutter
Type Of Tool Slot Mill
Insert/Tool TOOL
Cut Type Roughing, Semi Finishing
Insert Style RC
Insert Shape/Cutter Pocket Shape Round
Insert Type Positive
Insert Screw 538T
Dimensions & Sizing
Overall Length 3.5000 88.90MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Tool Dia 1.0000 25.40MM
Neck Length 1.5000 38.10MM
Tool Width 0.3750
Neck Dia 0.5
Materials & Finish
Tool Material Steel
