  • K-Tool SDCS-903 90° Spot Drill - 2 Flutes Effective - Must be held in a Collet Milling Cutter 1.700 Cutter Diameter 1.000 Round
Picture of K-Tool SDCS-903 90° Spot Drill - 2 Flutes Effective - Must be held in a Collet Milling Cutter 1.700 Cutter Diameter 1.000 Round

K-Tool SDCS-903 90° Spot Drill - 2 Flutes Effective - Must be held in a Collet Milling Cutter 1.700 Cutter Diameter 1.000 Round

ANSI: SDCS-903

ISO: SDCS-903

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOSDCS-903
Delivery date: 3-5 days
$215.29

Features And Benefits

90° Spot Drills - 2 Flutes Effective - Must be held in a Collet

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Package Size 1
Application Spot Drilling
Made In USA Yes
Insert Application General Purpose
Shipping State Pennsylvania

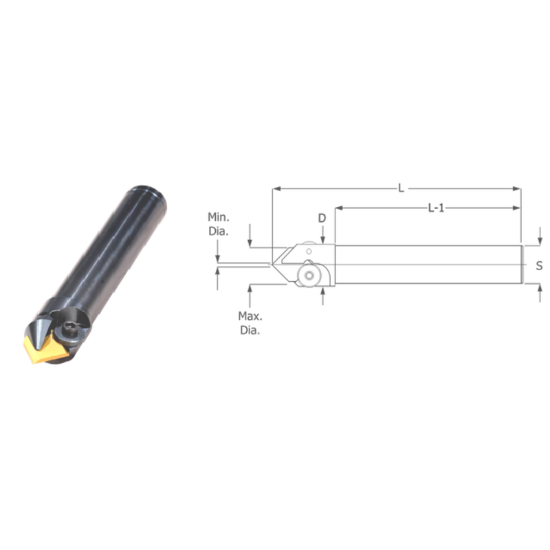

Dimensional Specifications
Cutter Dia 1.7000 43.18MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Max 1.5600 39.62MM
Cut Dia Min 0.3750 9.53MM - 3/8
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 4.8800 123.95MM
Tool Material Steel
Cutting & Machining Properties
Insert Style 903
Fasteners & Connectors
Clamp/Wedge 102518
Clamp Screw 142812
