  • K-Tool SDCS-822L 82° Spot Drill - 2 Flutes Effective - Must be held in a Collet Milling Cutter 1.120 Cutter Diameter 0.750 Round

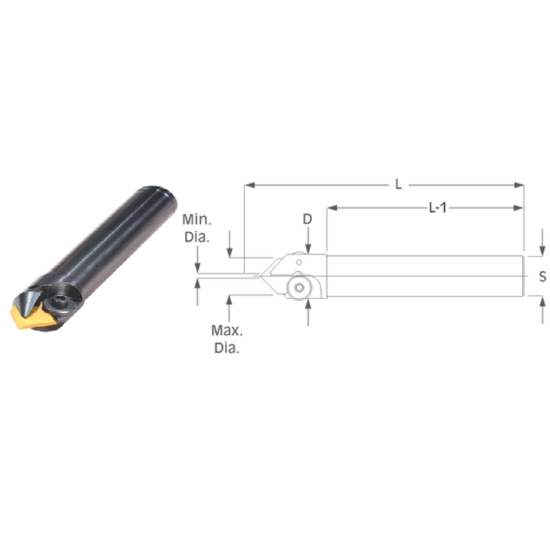

Picture of K-Tool SDCS-822L 82° Spot Drill - 2 Flutes Effective - Must be held in a Collet Milling Cutter 1.120 Cutter Diameter 0.750 Round

K-Tool SDCS-822L 82° Spot Drill - 2 Flutes Effective - Must be held in a Collet Milling Cutter 1.120 Cutter Diameter 0.750 Round

ANSI: SDCS-822L

ISO: SDCS-822L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOSDCS-822L
Delivery date: 3-5 days
$198.32

Features And Benefits

82° Spot Drills - 2 Flutes Effective - Must be held in a Collet

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Spot Drilling
Insert Application General Purpose
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Cut Dia Max 0.8800 22.35MM
Insert Size Ic 822L
Machine Side Connection Type Cylindrical
Overall Len 6.5350 165.99MM
Cutter Dia 1.1200 28.45MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cut Dia Min 0.2500 6.35MM - 1/4 - E
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Insert Style SD
Fasteners & Connectors
Clamp/Wedge 621915
Clamp Screw 103212
