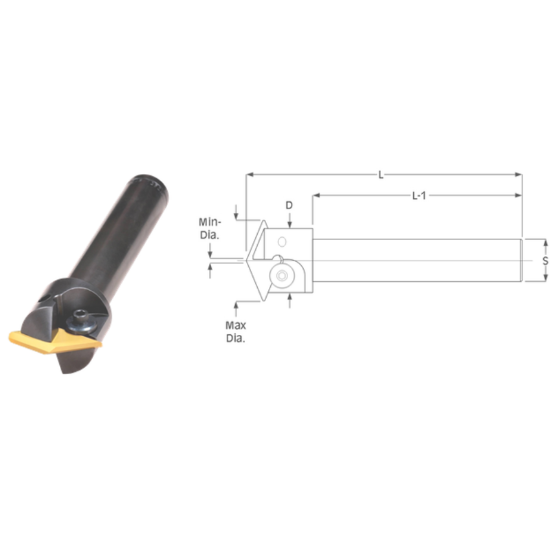

Picture of K-Tool SDCS-1352L 135° Spot Drill - 2 Flutes Effective - Must be held in a Collet Milling Cutter 1.600 Cutter Diameter 1.000 Round

K-Tool SDCS-1352L 135° Spot Drill - 2 Flutes Effective - Must be held in a Collet Milling Cutter 1.600 Cutter Diameter 1.000 Round

ANSI: SDCS-1352L

ISO: SDCS-1352L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOSDCS-1352L
Delivery date: 3-5 days
$198.32

Features And Benefits

135° Spot Drills - 2 Flutes Effective - Must be held in a Collet

Products specifications
Attribute name Attribute value
General Product Information
Application Spot Drilling
Insert Application General Purpose
Shipping State Pennsylvania
Package Size 1
Insert/Tool Tool
Made In USA Yes
Dimensional Specifications
Cut Dia Max 1.6250 41.28MM
Cutter Dia 1.6000 40.64MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 1.0000 25.40MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Tool Material Steel
Cut Dia Min 0.2500 6.35MM - 1/4 - E
Cutting & Machining Properties
Insert Style 1352
Fasteners & Connectors
Clamp Screw 103212
Clamp/Wedge 621915
