  • K-Tool SDCS-1001L 100° Spot Drill - 2 Flutes Effective - Must be held in a Collet Milling Cutter 1.000 Cutter Diameter 0.750 Round

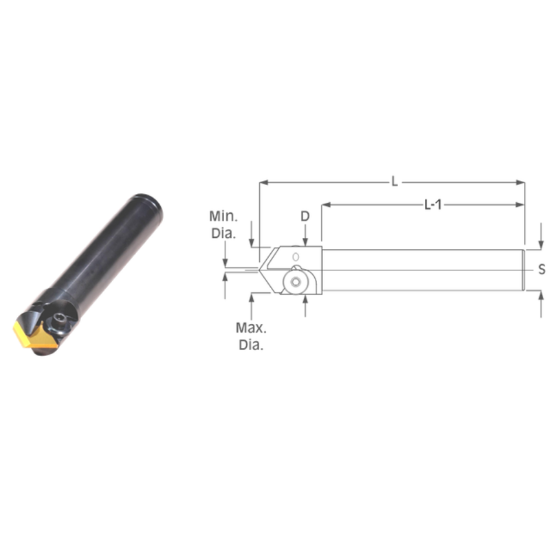

Picture of K-Tool SDCS-1001L 100° Spot Drill - 2 Flutes Effective - Must be held in a Collet Milling Cutter 1.000 Cutter Diameter 0.750 Round

K-Tool SDCS-1001L 100° Spot Drill - 2 Flutes Effective - Must be held in a Collet Milling Cutter 1.000 Cutter Diameter 0.750 Round

ANSI: SDCS-1001L

ISO: SDCS-1001L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOSDCS-1001L
Delivery date: 3-5 days
$165.27

Features And Benefits

100° Spot Drills - 2 Flutes Effective - Must be held in a Collet

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State Pennsylvania
Package Size 1
Application Spot Drilling
Made In USA Yes
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 1.0000 25.40MM
Tool Material Steel
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cut Dia Max 0.6300 16.00MM
Machine Side Connection Type Cylindrical
Cut Dia Min 0.6140 15.60MM
Overall Len 5.3100 134.87MM
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Style 1001
Fasteners & Connectors
Clamp Screw 103212
Clamp/Wedge 501912
