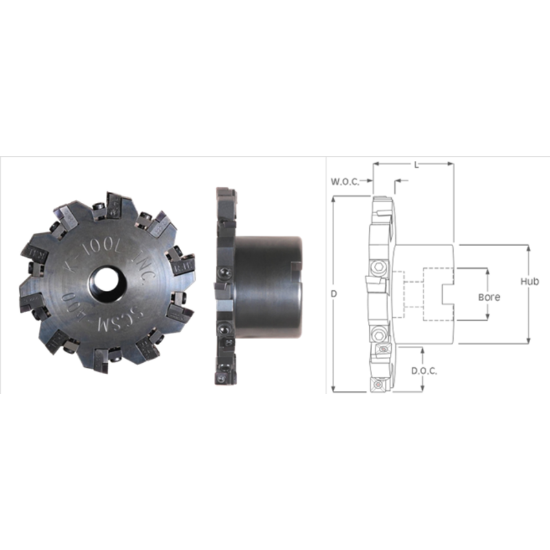

K-Tool SCSM-600 Milling Cutter 6.000 Cutter Diameter 1.250 Face Mill

ANSI: SCSM-600

ISO: SCSM-600

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOSCSM-600
Delivery date: 3-5 days
$1,292.65

Features And Benefits

Shell Mount Slotting Cutters / Half Side Mills K-Tool, Inc. slotting cutters will ship direct from the factory. All cutters will be preset at no charge using an indicator to ensure accuracy. Choose from the options below when ordering. - Full Slot - specify W.O.C. when ordering (.250 - 1.187)- Half Side Mill - Specify L.H.or R.H. when ordering (Please allow 1 - 2 business days for shipping)

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA Yes
Application Slot Milling
Dimensional Specifications
Tool Material Steel
Neck Dia 2.6250
Cutter Dia 6.0000 152.40MM
Depth Of Cut Max 1.5620
Tool Width 0.3400 - 0.4300
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.2500 31.75MM
Flutes/Inserts 14
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Seat/Nest 222C-RH/LH
Fasteners & Connectors
Clamp/Wedge 2
Clamp Screw 8
Insert Screw 314T
