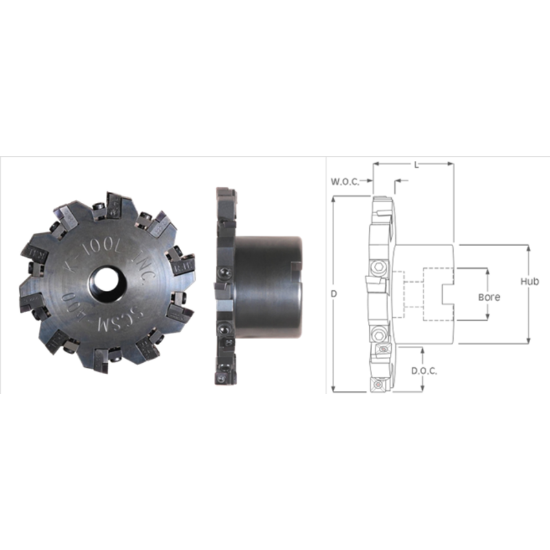

Picture of K-Tool SCSM-403 Milling Cutter 4.000 Cutter Diameter 1.000 Face Mill

K-Tool SCSM-403 Milling Cutter 4.000 Cutter Diameter 1.000 Face Mill

ANSI: SCSM-403

ISO: SCSM-403

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOSCSM-403
Delivery date: 3-5 days
$897.80

Features And Benefits

Shell Mount Slotting Cutters / Half Side Mills K-Tool, Inc. slotting cutters will ship direct from the factory. All cutters will be preset at no charge using an indicator to ensure accuracy. Choose from the options below when ordering. - Full Slot - specify W.O.C. when ordering (.250 - 1.187)- Half Side Mill - Specify L.H.or R.H. when ordering (Please allow 1 - 2 business days for shipping)

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Semi Finishing, Roughing
Made In USA Yes
Package Size 1
Insert Type Positive
Application Slot Milling
Dimensional Specifications
Neck Dia 2.0000
Tool Material Steel
Depth Of Cut Max 0.8750
Flutes/Inserts 8
Machine Side Connection Size 1.0000 25.40MM
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 4.0000 101.60MM
Tool Width 0.6870 - 0.9370
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Seat/Nest 432C-RH/LH
Fasteners & Connectors
Insert Screw 638T
Clamp/Wedge 3
Clamp Screw 10
