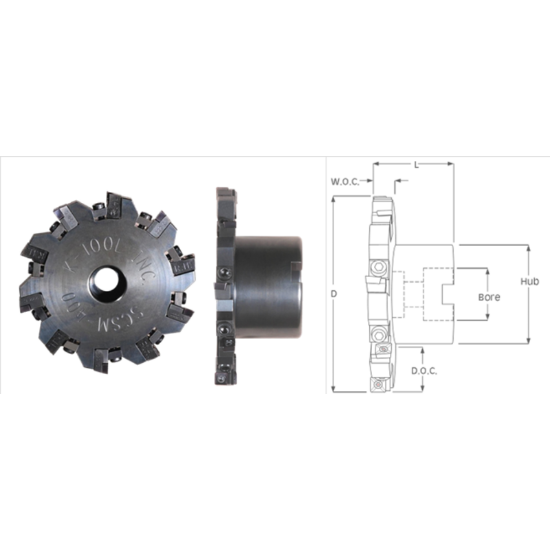

Picture of K-Tool SCSM-401 Milling Cutter 4.000 Cutter Diameter 1.000 Face Mill

K-Tool SCSM-401 Milling Cutter 4.000 Cutter Diameter 1.000 Face Mill

ANSI: SCSM-401

ISO: SCSM-401

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOSCSM-401
Delivery date: 3-5 days
$933.53

Features And Benefits

Shell Mount Slotting Cutters / Half Side Mills K-Tool, Inc. slotting cutters will ship direct from the factory. All cutters will be preset at no charge using an indicator to ensure accuracy. Choose from the options below when ordering. - Full Slot - specify W.O.C. when ordering (.250 - 1.187)- Half Side Mill - Specify L.H.or R.H. when ordering (Please allow 1 - 2 business days for shipping)

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Slot Milling
Made In USA Yes
Insert Application Semi Finishing, Roughing
Shipping State Pennsylvania
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.8750
Flutes/Inserts 8
Machine Side Connection Size 1.0000 25.40MM
Cutter Dia 4.0000 101.60MM
Neck Dia 2.0000
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Tool Width 0.4300 - 0.5300
Cutting & Machining Properties
Seat/Nest 2522C-RH/LH
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Clamp/Wedge 3
Insert Screw 314T
Clamp Screw 10
