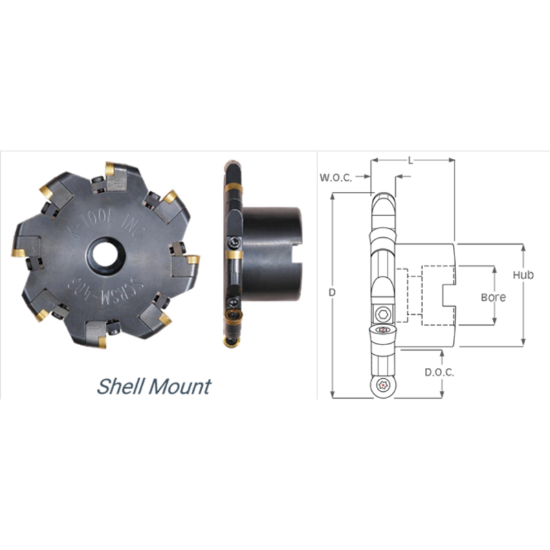

Picture of K-Tool SCRSM-525 Milling Cutter 5.000 Cutter Diameter 1.250 Face Mill

K-Tool SCRSM-525 Milling Cutter 5.000 Cutter Diameter 1.250 Face Mill

ANSI: SCRSM-525

ISO: SCRSM-525

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOSCRSM-525
Delivery date: 3-5 days
$1,125.60

Features And Benefits

Shell Mount - Full Radius Slotting Cutters - Ground & Molded Inserts Available - Round Inserts Reduce Cutting Pressure

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Made In USA Yes
Shipping State Pennsylvania
Insert Type Positive
Application Slot Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 1.0620
Tool Width 0.3120
Flutes/Inserts 10
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Neck Dia 2.6250
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 5.0000 127.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Seat/Nest 25R
Insert Style RC
Fasteners & Connectors
Clamp Screw 612
Insert Screw 314T
Clamp/Wedge 15
