Picture of K-Tool SCRSM-304 Milling Cutter 3.000 Cutter Diameter 0.500 Face Mill

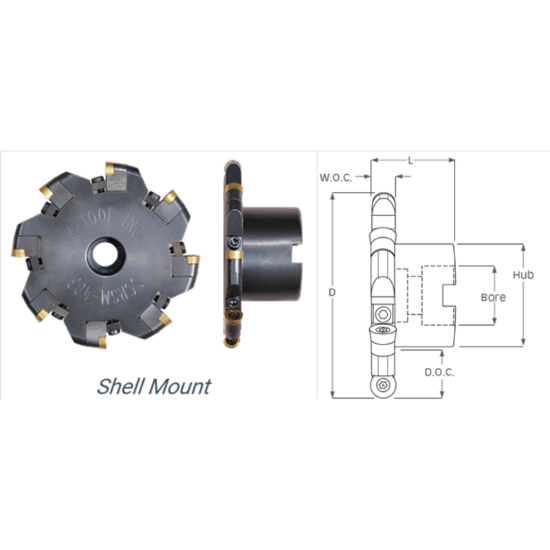

K-Tool SCRSM-304 Milling Cutter 3.000 Cutter Diameter 0.500 Face Mill

ANSI: SCRSM-304

ISO: SCRSM-304

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOSCRSM-304
Delivery date: 3-5 days
$802.21

Features And Benefits

Shell Mount - Full Radius Slotting Cutters - Ground & Molded Inserts Available - Round Inserts Reduce Cutting Pressure

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Made In USA Yes
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Slot Milling
Dimensional Specifications
Flutes/Inserts 5
Tool Material Steel
Neck Dia 1.3750
Cutter Dia 3.0000 76.20MM
Machine Side Connection Size 0.5000 12.70MM
Tool Width 0.5000
Depth Of Cut Max 0.7500
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Seat/Nest 435R
Insert Shape/Cutter Pocket Shape Round
Insert Style RC
Fasteners & Connectors
Insert Screw 838T
Clamp Screw 10
Clamp/Wedge 3
Only registered users can write reviews
