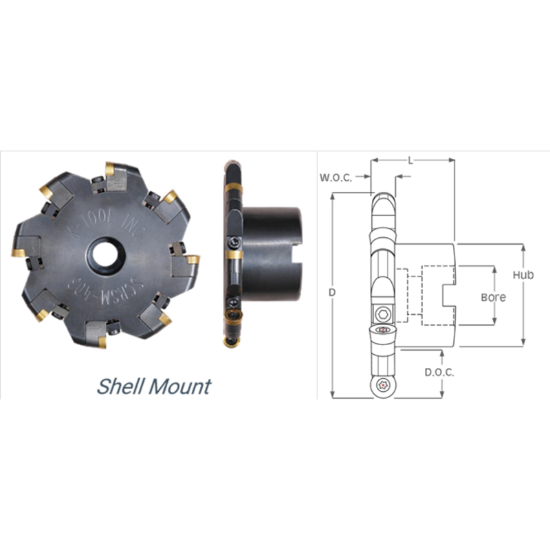

Picture of K-Tool SCRSM-302 Milling Cutter 3.000 Cutter Diameter 0.500 Face Mill

K-Tool SCRSM-302 Milling Cutter 3.000 Cutter Diameter 0.500 Face Mill

ANSI: SCRSM-302

ISO: SCRSM-302

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOSCRSM-302
Delivery date: 3-5 days
$863.85

Features And Benefits

Shell Mount - Full Radius Slotting Cutters - Ground & Molded Inserts Available - Round Inserts Reduce Cutting Pressure

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Application Slot Milling
Insert Type Positive
Insert Application Roughing, Semi Finishing
Package Size 1
Made In USA Yes
Dimensional Specifications
Depth Of Cut Max 0.7500
Neck Dia 1.3750
Tool Material Steel
Cutter Dia 3.0000 76.20MM
Machine Side Connection Type Face Mill/Shell Mill
Tool Width 0.2500
Machine Side Connection Size 0.5000 12.70MM
Flutes/Inserts 8
Cutting & Machining Properties
Seat/Nest 22R
Insert Style RC
Insert Shape/Cutter Pocket Shape Round
Fasteners & Connectors
Insert Screw 314T
Clamp/Wedge 15
Clamp Screw 612
